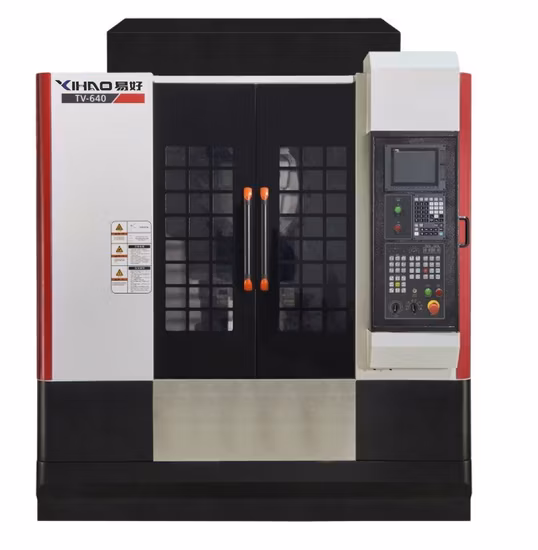

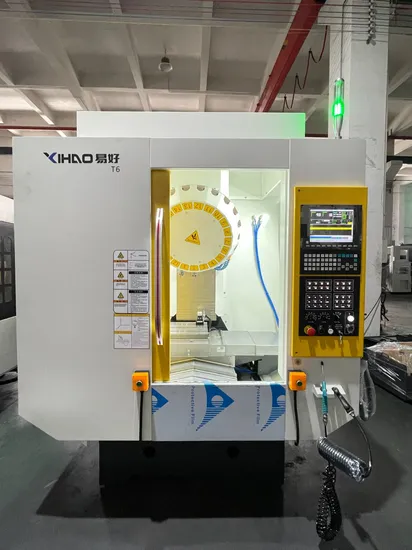

High Speed CNC Drilling and Tapping Machining Center


High Speed CNC Drilling and Tapping Machining Center

High Speed CNC Drilling and Tapping Machining Center

Product Introduction: CNC Milling Machine High Rigidity Drilling Tapping CNC Machine CenterThis series products are fine

Send your inquiry


Basic Info
Model NO. VTC-1000C
Numerical Control CNC/MNC
Performance Classification High-End CNC Machine Tools
Certification CE, ISO 9001
Condition New
Working Table Size 1100*500mm
X Axis Travel 1000mm
Y Axis Travel 500mm
Z Axis Travel 330mm
Spindle Rotation Speed 20000/24000rpm
Spindle Taper Bbt30-100 Short Nose Spindle
Spindle Power 3.7kw
3 Axies Linear Guide Way
Tool Magazine Form 21t Servo Atc
X Axis Rapid Feed 48m/Min
Y Axis Rapid Feed 48m/Min
Z Axis Rapid Feed 48m/Min
Cutting Feed 12m/Min
Positioning Accuracy 0.005mm/M
Dimension 2530*1930*2500mm
Transport Package Wooden Pallet or and Wooden Case
Specification 2530*1930*2500mm
Trademark JOINT
Origin China
HS Code 8457101000
Production Capacity 300
Product Description
Product Introduction:

CNC Milling Machine High Rigidity Drilling Tapping CNC Machine CenterThis series products are finely manufactured according to imported machine standard, with characteristics of high stability, high speed, high efficiency drilling and tapping performance. It is widely used in 3C, 5G, shell processing of electronics, parts and shell processing of aerospace, small auto parts, medical devices and other industries


Product Charactristics:

1. Three axes are all linear guiding pair, theirs rapid feed speed are 48m/min.

2. Strength its rigidity when designing construction, thus except for basic drilling funcations, it can also be used for low strength milling of aluminum parts.

3. Coupling, bearing, spindle, ball screw, linear guideway, tool magazine, play knife cylinder, guideway cover etc these key parts adopt German, Japan, Taiwan top brand, ensuring high precision and high stability of the machine.

4. Modularization of various configurations, through which satisfy customers' different pricessing requirements and personalized selection: 10000-20000rpm, 21T tool magazine.

5. This series of drilling and tapping machine is designed mainly for porous precision small parts, with advantages of high processing speed, changing tool swiftly.

6. Our company accumulates and continuously optimizes the customer application data, can provide customers with application technical support, effcient processing performance is more outstanding.


Industrial Applicant: Handphone shell Mechanical part Digital camera part

Product specifications:
X axis travelmm1000
Y axis travel mm500
Z axis travelmm330
Distance between spindle surface and working tablemm150-480
Distance between spindle center and columnmm546
Working table sizemm1100*500
Max load of working tableKG350
T slot number (No*size*pitch)mm5-18*100
ATC Type 21T Servo ATC
Max. Length/Weight of Tool 200mm/2kg
Tool holder specification BBT30-100 Short Nose Spindle
Installation diametermm100
Rotation speed ranger/min20000/24000
Spindle motor rateKW3.7
Cutting feedm/min12
X,Y,Z axis rapid movement speed m/min48/48/48
Positioning accuracymm0.005/0.005/0.005
Min setting moving unitmm0.001
The host weightKG3800

Standard Accessories:

1. Fanuc/ Mitsubishi control system
2. Fully closed cover
3. Three axes Rexroth linear guideway
4. Taiwan SPINDER spindle (BT30/100 diameter/20000rpm)
5. 21T Taiwan servo tool magazine
6. Spindle oil cooler
7. Heat exchange
8. BT30 tool holder 1pic; 6'' vise 1pic; clamping kit 1 set
9. Penumatic system
10. Auto lubrication system
11. Work piece cooling system
12. Clean air gun/ water gun

Optional Accessories:
1. Chain type auto chip conveyor
2. 4 axis

Product details:

Package:Company Information:
Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades. There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machineOur own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
