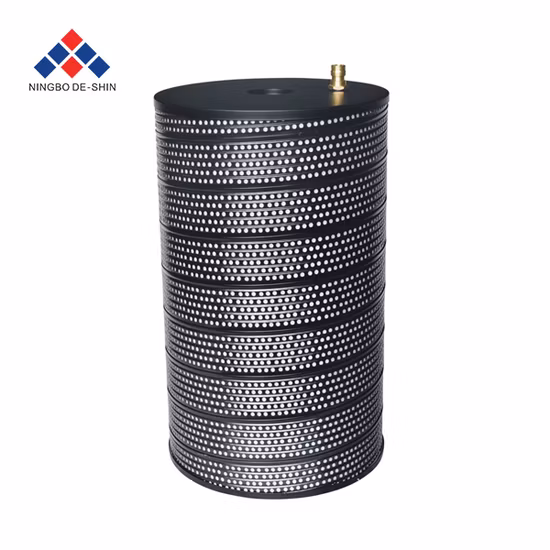

DESCRIPTION

Basic Info

Model NO.	DS-40, TW-40
Model No.	Ds-40, Tw-40 Side Nipple
Pressure Resistance	298kpa
Filter Paper	Awa and Korea Filter Paper
Filter Paper Precision	5um
Weight	7.2kg
Color	Black
Sample	Available
Filter Type	Water Filter
Maximum Pressure	198kpa
Pressure	Inside to Outside
Maker	Mitsubishi, Seibu, Hitachi, Makino, Chmer, Accutex
Metal Mesh	Perforated Metal Mesh or spiral Net
Transport Package	Standard Export Carton+Pallet
Specification	340*59*500
Trademark	De-Shin
Origin	China
HS Code	8421299090
Production Capacity	100000 Units Per Month

Product Description

MODEL	SIZE (OD*ID*H)	TYPE	PRESSURE	Filter paper weight/squre	Cartridge filter area	Use of time (20h/day)	MAKER
DS-40 side nipple	340*59*500 (5um)	Economy	inside to outside	145g/m2	13.8m2	440-560h	Mitsubishi Seibu Hitachi Makino Chmer Accutex
		Standard		148g/m2	13.8m2	480-600h
		Strong		148g/m2	16m2	520-660h

1. Applications:
For the filtration of dielectric medium in wire erosion and sink erosion machines.

2. Dimension:
Outer diameter: 340mm
Inner diameter: 59mm
Height: 500mm

3. Festures:
Flow direction: Inside to outside
Filter fineness: 5um
Filter surface area: 13.8m³
Expected service time: 480-600 hours

4. Filter paper:
Imported from Japan or South Korea

5. Pressure:
Max operation pressure: 1.98 Bar and Resistance to pressure: 2.94 Bar

6. Packing:
1unit/box, 2units/carton

7. Weight:
net weight:7.2kg/pcs, 17kg/carton

8. Volume:
the size of carton: 0.7m*0.35m*0.59m

9. Maker:
Mitsubishi, Seibu, Hitachi, Makino, Chmer, Accutex

10. Packaging & Delivery:
Packaging Details: 1 unit per box, 2 units per carton. Neutral packing or OEM brand as per customer request.
Delivery: 10-15 days upon confirmed order.
